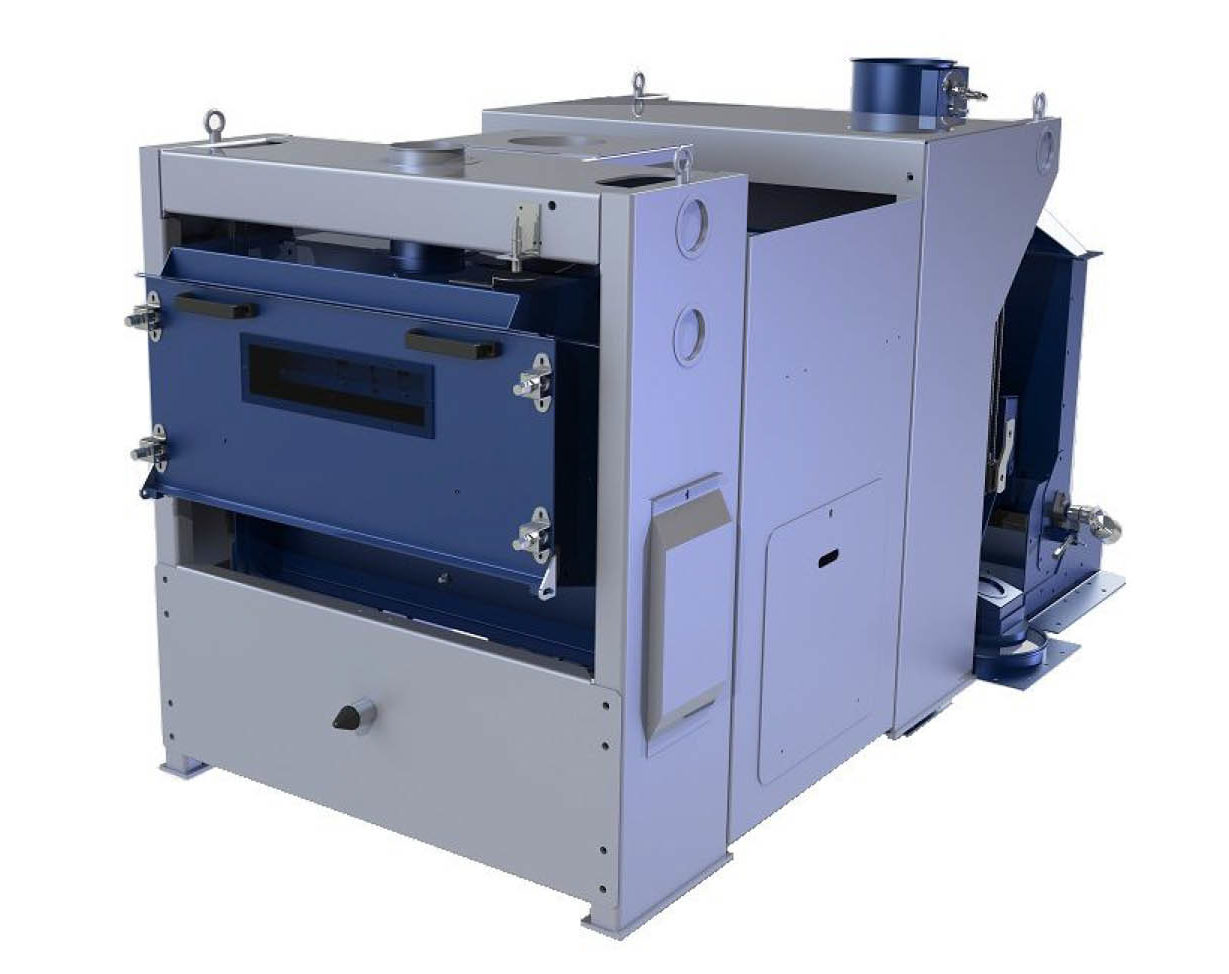

SNST 550 SEPARATOR-CLEANER
The SNST 550 Separator-Cleaner is designed for multiple uses and meets all cleaning needs: from basic cleaning upon reception and before storing to very fine cleaning before shipment.
The basic cleaning flow rate is 50 tph for wheat, but it can be adapted to any type of grain or seed: wheat, corn (maize), barley, oat, flax, rapeseed, peas, broad beans, etc.
Schneider Jaquet separators-cleaners operate on the basis of planetary movement, allowing better distribution of grains all over the sifting surface and thus enhancing the flow rate and yield.
This machine combines the functions of a dust remover, screener, lump breaker and scrubber, making the best of the most reliable techniques currently available for this work. The SNST 550 separator-cleaner is made of a hanging casing that is set in planetary motion by out-centred masses driven by a vertical shaft and low-power electrical motor.

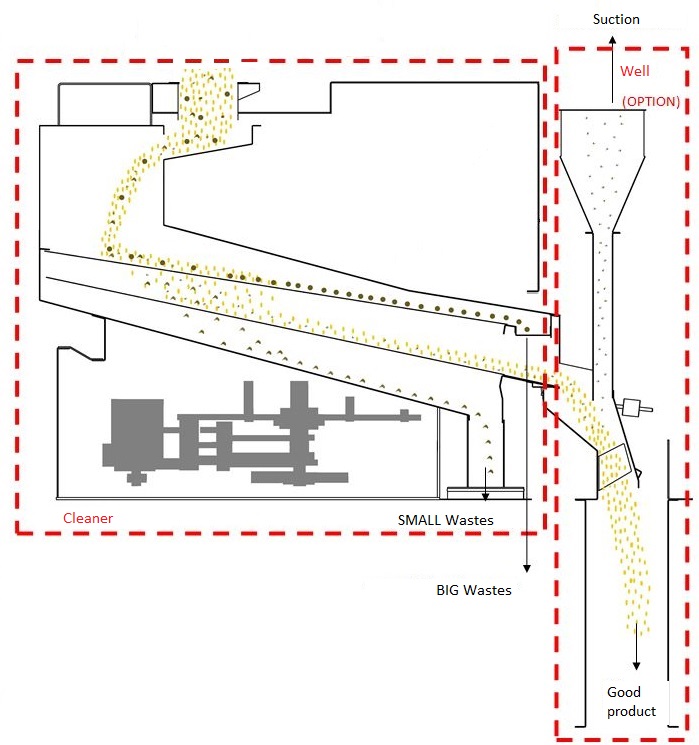

1- Grain is fed into a feeding casing which spreads it in an even layer over the entire width of the machine.
2- It contains a pre-breaking sift that removes a high percentage of large waste, thus allowing for better distribution over the two following sifting levels and preventing dirt accumulation.
3- Once the good product is obtained, it is fed through another sift that removes large waste or bigger grains and directs those to the large waste exit. The good product is then fed through a screen that separates fine products and directs them towards the screenings exit.
4- Once sifted, the good product is fed in a layer and let to fall as a cascade into the suction exit: an air flow is sent through the cascading grains, allowing for efficient, total and immediate extraction and collection of light particles: shells, hollow grains, light grains, broken grains.
• Abrasion coating of Creusabro® or Rhino-hyde® type
• Seed well
• Rear expansion chamber
• Expansion chamber mounted on frame
• Adaptable to food safety constraints
• Planetary movement keeps grains from getting stuck in the screens.
• Easy maintenance
• Low maintenance costs
• Heavy-duty, reliable equipment
• Changing of sifts is quick and easy
• Compact machine
|Model||Flow rate (tph)*||Surface area of screens (sq. m.)||Dimensions** (mm)||Weight** (kg)||Power (kW)|
* Basic cleaning flow rate for wheat with a specific density of 0.75, 14% humidity, 6% input impurities
** Weight and dimensions of standard machines
